NEF (New Engine Family) Complete F4CE0454C*D601 - NEF 4LTC 85 HP (FPT / New Holland / Fiat / Iveco) P/N: 504092517
Exporter of IVECO / FPT ENGINE PARTS, headquartered in Slovakia (European Union).
Genuine (OE), alternative (OEM), Reman.
Professional handling of worldwide deliveries.
Genuine (OE), alternative (OEM), Reman.
Professional handling of worldwide deliveries.

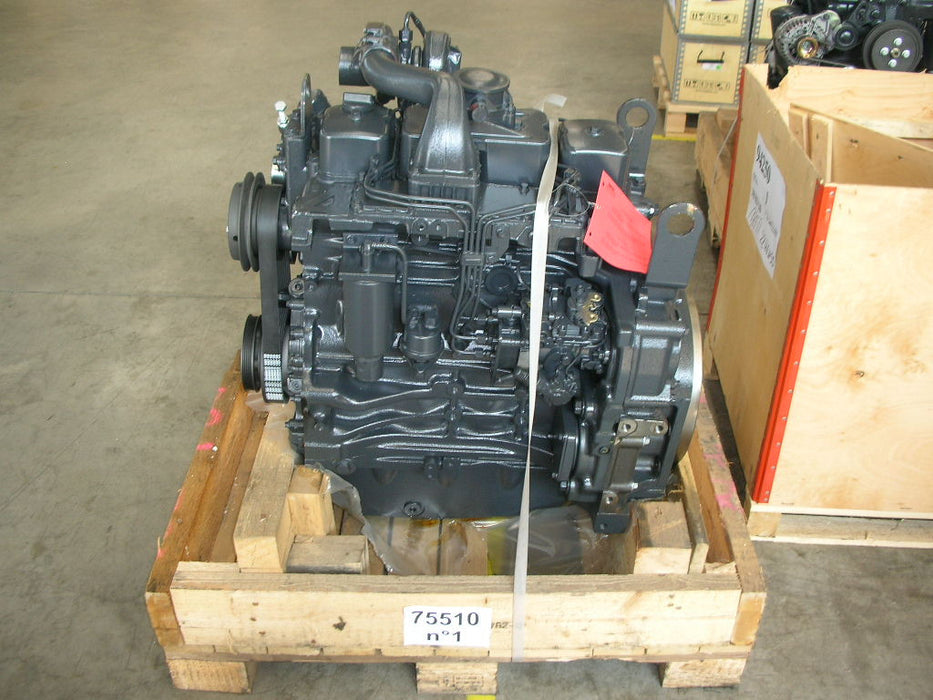

Complete NEW ENGINE with engine type NEF STRUCTURAL ENGINE 66 KW TIER 2
4 CYL - 2V - 4,5 L - TC -12V Part Number: 504092517
| Main Components | Description |
| Engine Rating | Max Gross Power: 66 kW @ 2300 rpm; Max Gross Torque: 365 Nm @ 1400 rpm |
| Homologation | Directive 97/68 EEC - Stage2 & EPA Tier2 |
| Injection Pump | Mechanical, rotary, left side |
| Engine shut off | 12V energize to run fuel shut off incorporated in the injection pump |
| Lift Pump | Mechanical, left side |
| Gear Housing | Rear, aluminium |
| Flywheel | 11", Inertia 0,518 kgm2 |
| Crankshaft Pulley | 8 groove - ø 173 mm |
| Fan Position | Onto the engine ; X=0 mm , Y=280 mm ; ratio: 1,43 |
| Fan | None |
| A/C Arrangement | None |
| Noise Panel | Internal, mounted onto the block |
| Belt Tensioner | Manual |
| Main Belt | 8 groove |
| Alternator | 90 A, 12 V, right side |
| Engine Starter | 3 kW, 12 V, right side |
| Turbocharger | Fix geometry, right side,hight position,exhaust rear wards |
| Turbo Inlet Connection | OD= 76 mm,towards the front right side |
| Turbo Exhaust Connection | OD=69,5mm, towards the rear, right side |
| Intake manifold connection | Pipe between turbocharger and intake manifold |
| Water Pump | Into the block , front side |
| Thermostat | 83°C opening, 98°C closing |
| Water Inlet | OD=48 mm, slant inlet downwards, right side |
| Water Outlet | OD=45 mm, vertical outlet upwards, right side |
| Engine Oil Cooler | Integrated into the block, right side |
| Oil Pan | Narrow pan oil with balancer engine |
| Dipstick | Vertical pull dipstick, right side |
| CCV | Over cover valve |
| Oil Filter | On engine, right side |
| Oil Fill | Left side,mid of block |
| Oil Pump | By gears, front side |
| Fuel Filter | On engine, left side |
| Grid Heater | None |
| PTO Arrangement | B17X14 DIN 5482 ; Max Torque 100 Nm ; PTO speed/Engine speed = 1,091 |
| Engine shipment | No oil. Iveco anticorrosion treatment |
| Engine Painting | Gray, single coat (60 μm) |
Shown or quoted prices DO NOT include VAT.
